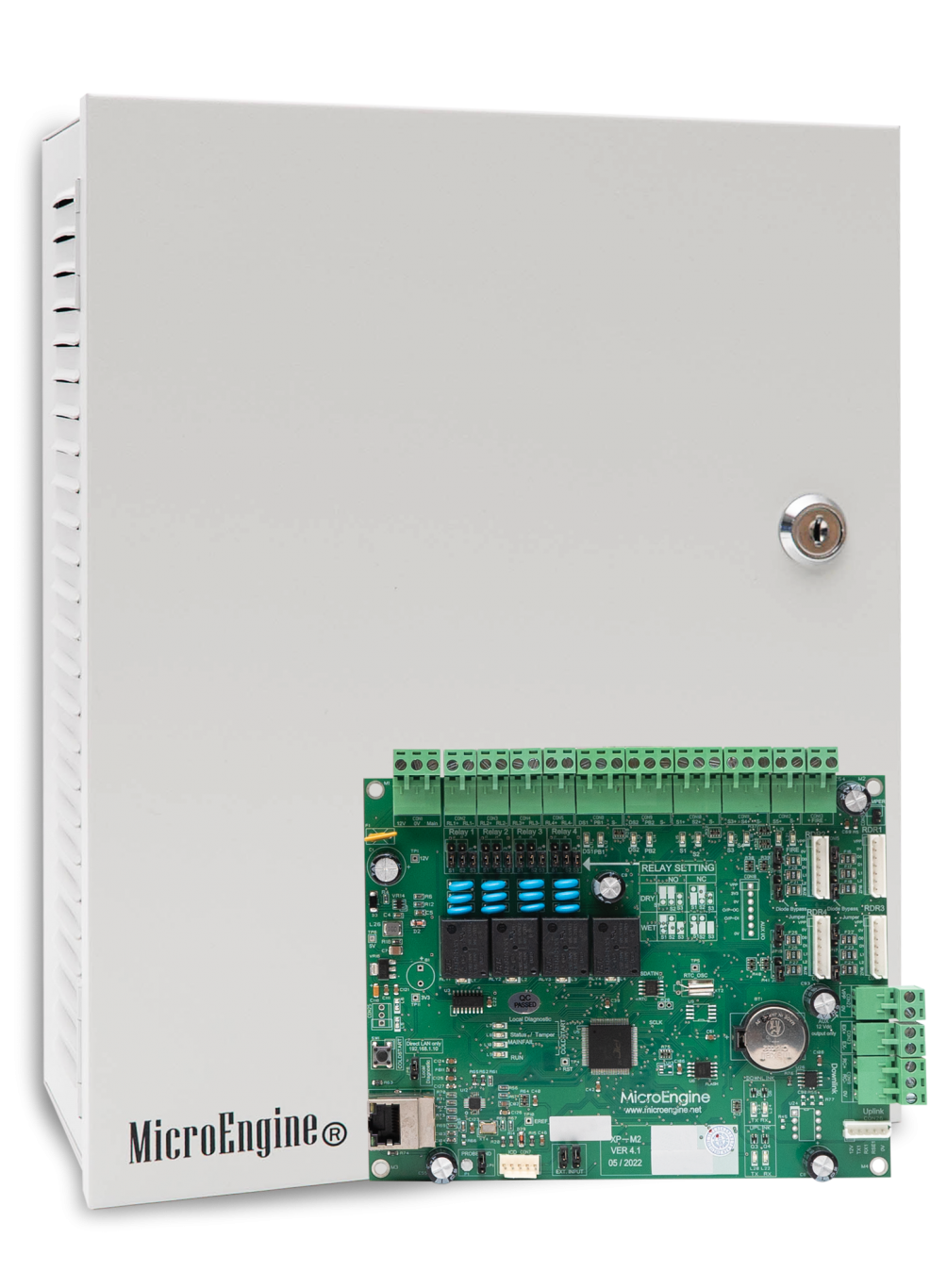

XP-Q2300iCA-CP
XP-Q2300iCA-CP
2 Door IP Access Controller
- Wiegand Interface
- Encrypted IP
- Device Discovery
- Global Antipassback Client
- Firmware Upgrade
- AES 256 IP Encryption Strength

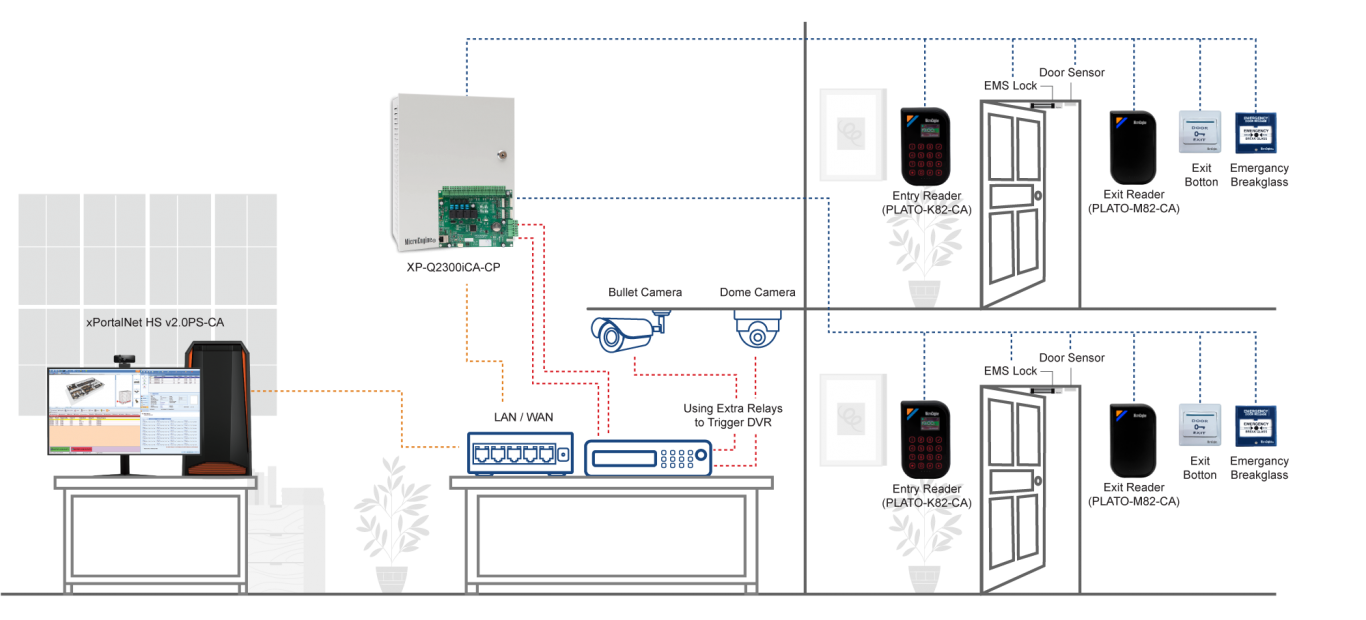

FeaturesConfiguration DiagramDocumentation
| No | Item | Features |
| 1. | Card Holder Size | 30,000 (Card Length: 20 Digits) |
| 2. | Max Transactions Log | 50,000 |
| 3. | Connect to Software | TCP/IP |
| 4. | IP Encryption Strength | AES 256 |
| 5. | Connect to Reader | RS485 (PLATO Reader) (3rd Party Wiegand Reader) |
| 6. | PLATO Reader | Max 4 (PLATO Reader, 2 Entry & 2 Exit) |
| 7. | Wiegand Reader Port | Max 2 ( 1 Entry & 1 Exit) |
| 8. | Input(s) | 2 Door Sensor + 2 Exit Button 1 Dedicated Tamper Input |
| 9. | Output(s) | 2 Dedicated Door Relay Configurable Dry/Wet & NO/NC (Support max 12VDC, 1A) |
| 10. | Real-Time Clock | With On-Board Battery |
| 11. | Power Fail Monitor | Yes |
| 12. | Processor | PIC32-32bit MIPS MCU at 80 MHz |
| 13. | Data Flash Memory | EEPROM: 256 KB x 2, Flash 4 MB |
| 14. | Flash | 512 KB |
| 15. | PCB Board Dimension | 160 mm (L) x 80 mm (W) |
| 16. | Casing Dimension | 316mm (H) x 246mm (W) x 104mm (D) |
| 17. | Power Supply | Input: 230VAC, 1.2A Output: 13.8VDC, 4.5A (Max) |
| 18. | Power Consumption | Typically 12VDC, 150mA (Controller board only) |
| No | Documentation |
| 1. |  DATASHEET 2025 : XP-Q2300iCA-CP |
