M Series Controller – XP-M2300i/IP

M2300i-03

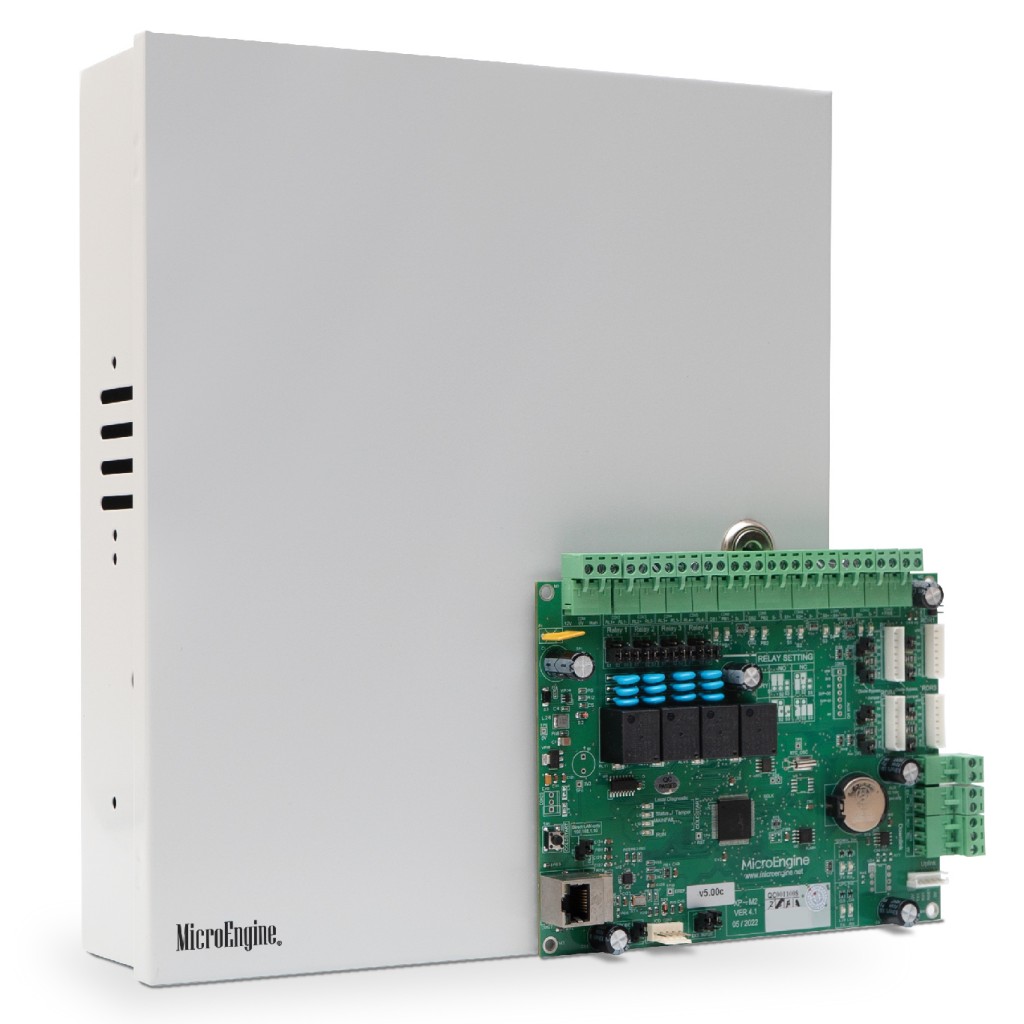

2 Door IP Access Controller

  • Direct IP Lan
  • Encrypted IP
  • High Capacity
  • True 2 Doors / 4 Readers Capability
  • Integration Reader (CCTV)
FeaturesConfiguration DiagramDocumentationFAQ
No Item Features
1. No. of Doors 2 Doors
2. No. of Readers Max 4 Readers (Plato Readers) – 2 Entry / 2 Exit
3. Wiegand / ABA Reader Yes – Max 2
4. Connection to PC

1. IP LAN (10/100 Base-T) /

2. RS485 (Optional)
5. Connection to Readers

1. RS485 – Plato Reader Series /

2. Wiegand / ABA
6. Card Holders 30,000 (16 Digits)
7. Transactions 50,000
8. Time Setting 255 Time Sets / 255 Time Zone (No Access Level Limits)
9. Holiday 30 (2 sets)
10. Inputs 2 x Door Sensor, 2 x Exit Button, 1 x Fire Alarm Input, 1 x Tamper Input, 5 x Sensor Input

  • 2 Door Sensors + 2 Exit Buttons
  • 1 Dedicated Fire Alarm Input
  • 5 Configurable as Reader Tamper, Emergency Breakglass Monitor or General purpose
11. Door Relay Output(s) Yes (2)
12. Extra Relay Output(s) Yes (2) – Configurable
13. Encrypted IP Yes. AES 128
14. Real Time Clock Yes (with On Board Battery)
15. Power Fail Monitor Yes (with Power Level Monitoring)
16. Firmware Upgrade Download from Software
17. Diagnostic Yes – Using Built in Web Browser
18. Onboard LED Indicators Yes – Input, Output, Run, Diagnostic, Error
19. Onboard Buzzer Yes
20. Use with Other MicroEngine controllers Yes
21. Dimension 310 mm (H) x 267mm (W) x 72mm (D)
22. Power 240VAC
No Documentation
1. PDF-IconDATASHEET-2023_XP-M2300-IP

FAQ

1. I have purchased XP-M2300i and I need to…
  • To install the controller, follow the wiring connection diagram provided, see article ID: AA-00364
  • To configure the uplink connection, see article ID: AA-00216 if using network connection, or see article ID: AA-00320 if using RS485 connection.
2. I have installed XP-M2300i at my site, but how do I configure the controller
  • To reset the controller to factory default setting (Coldstart), see article ID: AA-00304
  • How to use Auto PIN only to access the door, see article ID: AA-00204
  • To configure car park application using XP-M2300i, see article ID: AA-00342
3. Troubleshooting Guide
  • Problem to set the address number for reader and controller, see article ID: AA-00332
  • What is the default IP address for the XP-M2300i controller, see article ID: AA-00336
