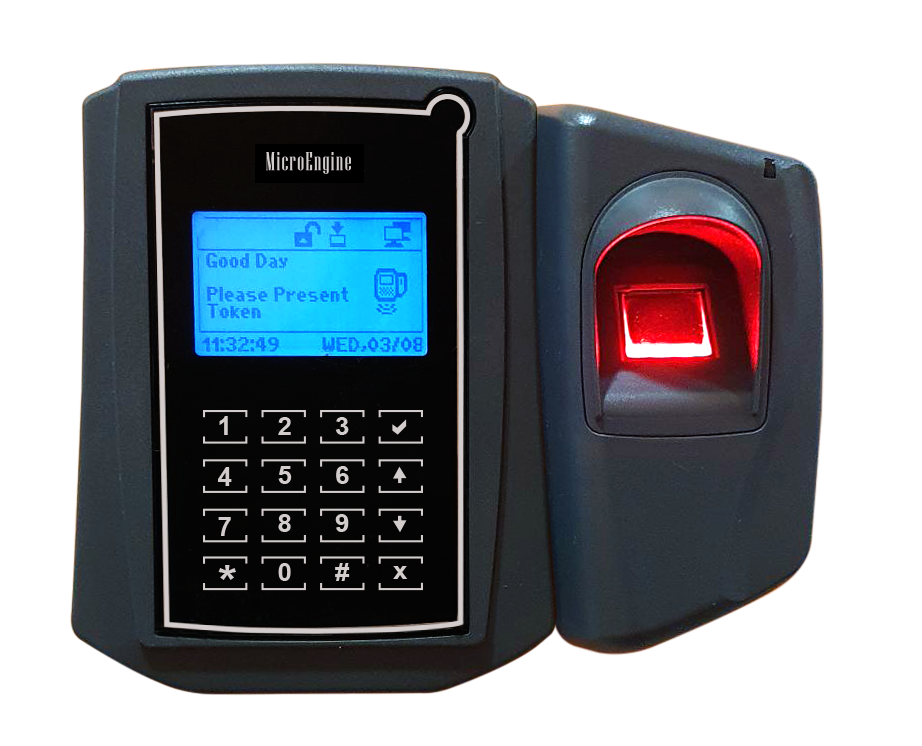

IP / RS485 based Fingerprint Access Control System

The XP-GT10KLABX Access Control System is designed to meet the high standards required in security for today and in the future. Attached with the fingerprint verification unit, the XP-GT10KLABX is able to cater for different levels of security needs and applications. The user may have an option to install a card identification first and still have the option to add the fingerprint verification when the need arises.

Product Features :

  • Software Control
  • Diagnostic
  • Wiegand Interface
  • External Relay Unit
  • Firmware Upgrade
  • Fingerprint Module
Product SpecificationConfiguration DiagramDocumentationFAQ
No Item Features
1. Input Voltage 12VDC
2. Current Consumption 300mA
3. Processor 32-bits RISC
4. Clock Speed 80 MHz
5. Data Flash Memory 32 MB
6. RAM 512 KB
7. Built-in Real Time
Clock with Battery		 Yes
8. Watchdog Timer Yes
9. Communication Ports RS485 / LAN
10. Supported Interface MAS-RBM
11. Reader Input ABA, Track 2, Wiegand 26
12. Display 128 x 64 graphic display with backlight
13. Keypad Touch Sense Keypad with backlight
14. Operation Mode Door Access mode, Time Attendance Mode
15. Build-in Card Reader Yes – MIFARE Card and MIFARE Sector Reading
16. Card Holder Size 10,000 User
17. Fingerprint Template Capacity 10,000 templates (1:10,000)
18. Anti-Passback Yes (Local)
19. Dimension 131 mm (H) x 158 mm (W) x 65 mm (D)
20. Enrolment Time  < 1 sec
21. Sensor Technology Optical Sensor

DISCLAIMER: Specifications subject to change without notice

Configuration Diagram GT3500L

No Documentation
1. PDF-Icon DATASHEET PRODUCT : XP-GT10KLABX

FAQ

1. I have purchased XP-GT10KLABX and I need to…
  • To install the controller, follow the wiring connection diagram provided, see article ID: AA-00362
  • To configure the uplink connection, see article ID: AA-00267 if using network connection, or see article ID: AA-00269 if using RS485 connection
  • To configure down link connection, see article ID: AA-00270
  • To configure finger print template, see article ID: AA-00453
    2. I have installed XP-GT10KLABX at my site, but how do I configure the controller
    • To reset the controller to factory default setting (Coldstart), see article ID: AA-00461
    • To set the controller as entry and exit door for single door only, see article ID: AA-00211
    • To add staff record at the controller, see article ID: AA-00455
    • To add/ enrol finger print at the controller, see article ID: AA-00236
    • To save/ backup the finger print template from the controller to the software, see article ID: AA-00234
    • To set the Verification Mode to “Finger Print only”, see article ID: AA-00316
    • To delete finger print template from the controller, see article ID: AA-00239
      3. Troubleshooting Guide
      • Get error “Wrong Token Type” after scan the finger prin, see article ID: AA-00315
      • Unable to add finger print and display the Fingerprint already exist, see article ID: AA-00238
      • The controller memory has been cleared or deleted, how to re-send the user’s fingerprint template to the controller, see article ID: AA-00237
