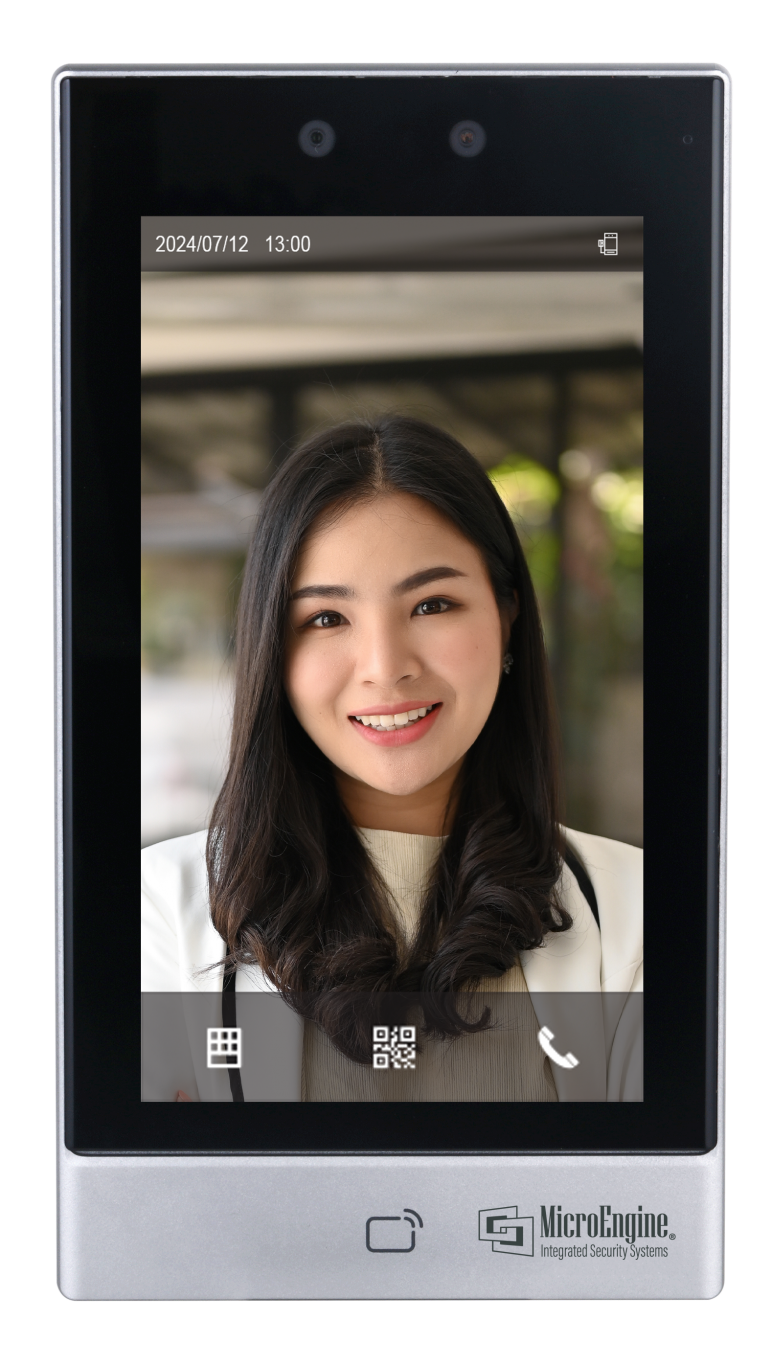

XP-FR70S-Face Recognition Terminal
XP-FR70S
Face Recognition Terminal
The XP-FR70S is a cutting-edge facial recognition terminal designed to deliver fast, secure, and touchless access control. Ideal for modern workplaces, residential communities, and high-security facilities, the XP-FR70S integrates seamlessly with MicroEngine’s access control ecosystem to provide a frictionless user experience.
Product Features:
- Unrivaled Security
- Smarter Access
- Maximum Versatility

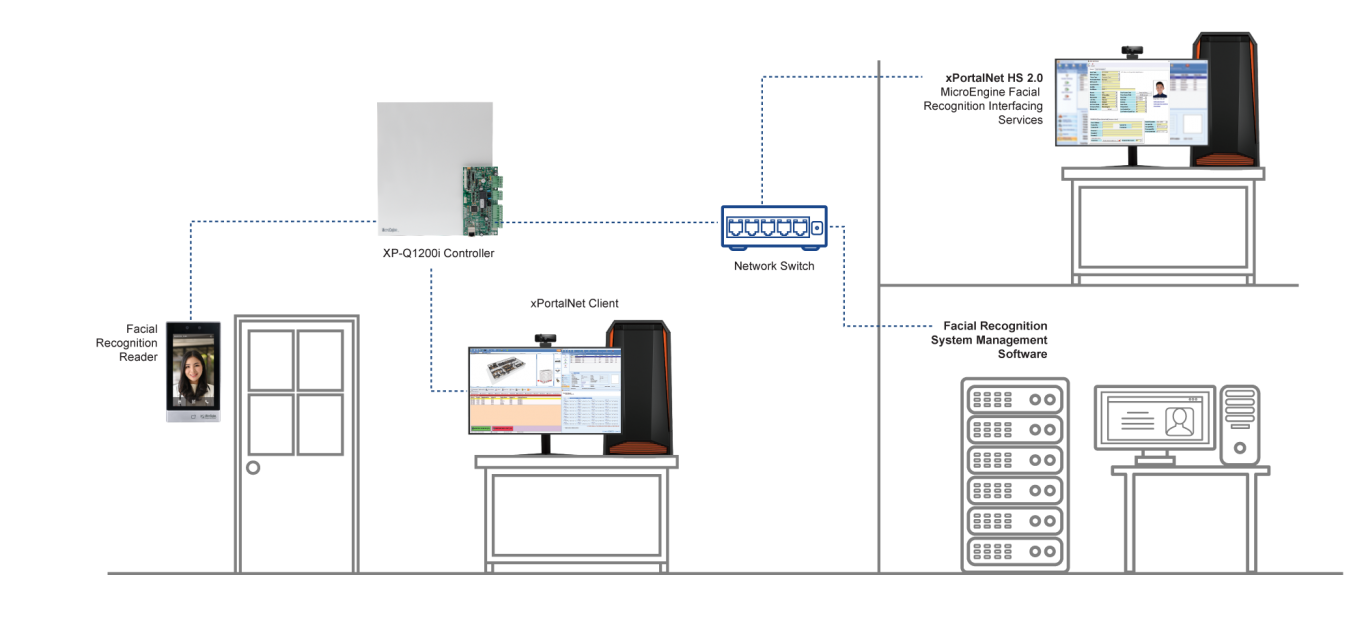

FeaturesConfiguration DiagramDocumentation
| No | Item | Features |
| 1. | Display Screen | 7” LCD Capacitive Touchscreen |
| 2. | Screen Resolution | 600 (H) x 1024 (V) |
| 3. | Camera Lens | 2-MP Dual Lens CMOS Camera |
| 4. | WDR | DWDR |
| 5. | Light Compensation | Auto IR |
| 6. | Audio notification | Yes |
| 7. | Build Materials | Tempered Glass/PC |
| 8. | Facial Recognition Height | 0.9m-2.4m |
| 9. | Facial Recognition Distance | 0.3m-2.0m |
| 10. | Facial Recognition Accuracy | 99.9% |
| 11. | Facial Key Points of Face Target | 360 |
| 12. | Facial Recognition Time | Support |
| 13. | Liveness Detection | 267 mm (H) x 310 mm (W) x 72 mm (D) |
| 14. | Card Reading Distance | 0 – 3 cm |
| 15. | Card Type | Mifare Card |
| 16. | Multi-factor Authentication | Support. Face + Card |
| 17. | Tamper Alarm | Yes |
| No | Documentation |
| 1. |  Datasheet_2025:XP-FR70S |
