Multi Function Access Control System
xPortal3500

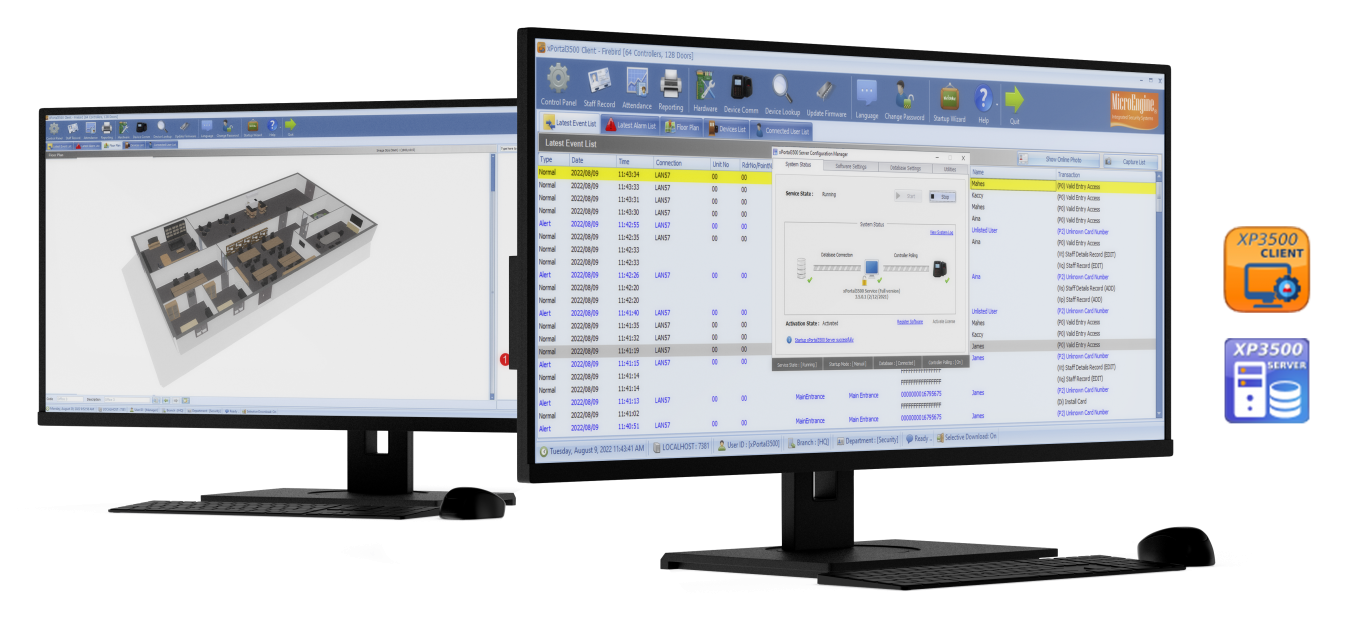

MicroEngine xPortal3500 software is an access control and security management system designed to provide comprehensive and flexible control over access to buildings and facilities. The software offers a range of features and functionalities, including the ability to manage and monitor multiple doors and lifts, control and customize access levels for individual users, and generate detailed activity and attendance reports. The xPortal3500 software supports multiple types of access tokens, including MIFARE card, ID, DESFire DFM and fingerprint biometrics. It also includes a user-friendly interface that allows for easy setup, management, and monitoring of the system.
xPortal3500 Features :
Support Up to 128 Doors
- The system can monitor up to 128 doors in real-time and has a user-friendly graphical interface. It displays floor plans with dynamic icons that show the status of monitored devices, and users can click on the icons to execute commands easily.
DESFire DFM
- DESFire on M series controller (DFM) solution is designed to enhance security and prevent hacking and cloning issues. MicroEngine uses DESFire EV2 cards for encoding and employs AES 128-bit encryption to provide advanced security for confidential data.
Lift Access
- The system enables control of lift access for as many as 128 floors per lift. It also supports multiple lobby implementations, which is particularly useful for managing large-scale projects.
Built-in time Attendance
- The shift configuration is designed for small offices and includes a Shift Setup Wizard. Users can rebuild time attendance based on a schedule and export the data to a configurable destination. It also offers a variety of time attendance reports and the ability to export raw transaction data to third-party HR systems for a complete solution.
Support Multi-Language
- With multi-language support, users can easily navigate the software in their preferred language, improving their overall experience and productivity.
Reliable Database
- Utilises Firebird as the Database Management System (DBMS) due to its robustness, scalability and cost- effectiveness.
Client-Server Architecture
- The client-server architecture of the software allows for efficient operations and secure sharing of data among up to 3 workstations.
Product SpecificationOrdering InformationPC RequirementsDocumentation
| No | Features |
Description
|
||
|
Free
|
xPortal3500/S
|
xPortal3500
|
||
| 1. | Operating System |
Windows 10, and 11 (Home & Starter Editions Not Supported) Windows Server 2019 and 2022 (requires Microsoft .Net Framework v3.5)
|
||
| 2. | Max No. of Controller/ Doors |
8/16
|
32/64
|
64/128
|
| 3. | Controller Supported |
XP-M1300i, XP-M1300i/IP, XP-M1000i-SE21, XP-M2300i, XP-M2300i/IP,
XP-M4L/IP, XP-GT3500L, XP-GT3500ABL, XP-GT10KL, XP-GT10KABL,
XP-GTR1500L, XP-GTR1500ABL
|
||
| 4. | Card Holder |
1,000
|
10,000
|
10,000
|
| 5. | Communication Link to PC |
Serial RS485 or IP
|
||
| 6. | Wizard-Based Configuration |
Quick Start Guide, Add New Controller, Floor Relay Setup, Shift Configuration
|
||
| 7. | Software Activation |
Required
|
||
| 8. | Server as Window Service |
Yes
|
||
| 9. | Import Card Holder Records |
Support .txt, .csv, .xls, .xlsx. Import options include add, update, and delete
|
||
| 10. | Card Holder Centric View |
No
|
No
|
Yes
|
| 11. | Multi-Workstation |
No
|
No
|
Yes – Max 3
|
| 12. | Selective Download |
No
|
No
|
Yes
|
| 13. | Floor Access |
No
|
No
|
Yes
|
| 14. | Time Set & Time Zone |
255
|
||
| 15 | Holiday Dates |
30
|
||
| 16. | Door Access Levels |
255
|
||
| 17. | Floor Zone |
255 (By Controller)
|
||
| 18. | Floor Access Levels |
255
|
||
| 19. | Anti-Passback |
Yes
|
||
| 20. | Database |
FireBird
|
||
| 21. | Multi-Database (Simplify Multi-Site Management) |
No
|
No
|
Yes
|
| 22. | Scheduled Backup |
No
|
No
|
Yes
|
| 23. | Transaction Records |
Limited by Disk Space
|
||
| 24. | Automatic Transaction Retrieval |
Yes
|
||
| 25. | Real-time Transaction Export |
Yes – Configurable Export Format and Destination
|
||
| 26. | Location Tracking |
Yes – Card Holders’ Last Location Report, Who’s Still In Report
(Multiple Door Selection) |
||
| 27. | Online Events Viewing |
Yes
|
||
| 28. | Online Events Shortcut – Provide Quick Access to Perform Relevant Operations to Event |
No
|
No
|
Yes
|
| 29. | Dynamic Floor Plan |
Yes ( Online Devices’ Status, Interactive Device Control, Map Link )
|
||
| 30. | Floor Plan Thumbnail – Easy Navigation |
No
|
No
|
Yes
|
| 31. | Advanced Floor Plan Icon Setting |
No
|
No
|
Yes (Can Resize, Rotate & Change Label Position)
|
| 32. | System User |
Use Default Only
|
Can Add New System User
|
Can Add New System User
|
| 33. | System User Menu Access Setting |
No
|
Yes
|
Yes
|
| 34. | Language Selection by System User |
No
|
Yes
|
Yes
|
| 35. | Daily Attendance Reporting |
Yes – Simple Single Day Daily Mode Late-in, Absent, Total work time, OT, Flexi Hour
|
||
| 36. | Monthly Attendance Reporting |
Yes – Summary of Attendance Status
|
||
| 37. | Scheduled Attendance Rebuild |
No
|
No
|
Yes
|
| 38. | Export Time Attendance |
Yes – Configurable Format and Destination
|
||
* The feature listed here are for the software only. It depends on the choice of the hardware system such as controller, I/O board, readers and computer system for it to work. Kindly contact our representatives for further clarifications.
| No | Item | Features |
| 1. | MCI-XPC3500/S | xPortal3500 Standalone Software License Standalone edition, max 32 controllers or 64 doors (whichever comes first) |
| 2. | MCI-XPC3500 | xPortal3500 Client / Server Software License Full edition, max 3 clients, max 64 controllers or 128 doors (whichever comes first) |
| 3. | XP-M1300i/IP | 1 Door Network Controller. Max 2 RS485, In & Out Readers / 2 Weigand Reader Connection. 2 Relay Outputs & 6 Inputs. 30,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure. |
| 4. | XP-M1000i-SE21 | 1 Door Network Controller. Max 2 RS485, In & Out Readers Connection. 1 Relay Output & 4 Inputs.10,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure. |
| 5. | XP-M2300i/IP | 2 Door Network Controller. Max 4 RS485, 2 In & 2 Out Readers / 2 Weigand Reader Connection. 4 Relay Outputs & 11 Inputs .30,000 Users, 50,000 Event Transactions. TCP/IP Power Supply & Back Up Battery with Metal Enclosure. |
| 6. | XP-M4L/IP | Lift Access Controller (4 COP Panel). 10,000 Users, 50,000 Event. Transactions. TCP/IP Uplink. Power Supply & Back Up Battery. Metal Enclosure. |
| 7. | PLATO-P80MS | Proximity Reader. 125 kHz EM. RS485. ABS Casing. MCMC Certified. |
| 8. | PLATO-P80KLS | Proximity Reader with Keypad & LCD. 125 kHz EM. RS485. Smart Touch Sense Keypad. Graphic LCD Display. ABS Casing. MCMC Certified. |
| 9. | PLATO-S82 | MIFARE / CEPAS Contactless Reader. 13.56 MHz ISO14443A / B. RS485. ABS Casing. Small Size. MCMC Certified. (Replacement Model for PLATO-C80S). |
| 10. | PLATO-M82 | MIFARE Classic / DESFire Advanced High Security Multi-Format 13.56 MHz ISO14443A / B. Encrypted RS485 – Read CSN and Encrypted Profile ID. ABS Casing. MCMC Certified. (Replacement Model for PLATO-RM80MS). |
| 11. | PLATO-K82 | MIFARE Classic / DESFire Advanced High Security Multi-Format 13.56 MHz ISO14443A / B. Color Graphics LCD. Touch Sense Keypad. Encrypted RS485 – Read CSN and Encrypted Profile ID. ABS Casing. MCMC Certified. (Replacement Model for PLATO-RM80KLS). |
| 12. | XP-GTR1500L | Proximity Reader with Capsense Keypad and LCD and built-in single door controller with direct TCP/IP LAN. 1,500 users, 10,000 event transactions. |
| 13. | XP-GTR1500LABX | MIFARE / ISO14443A / B Serial No Reader with Capsense Keypad and LCD and built-in single door controller with direct TCP/IP LAN. 1,500 users, 10,000 event transactions. |
| 14. | XP-GT3500L | Proximity Reader with FingerPrint Reader with Colour LCD and Keypad reader and built-in controller with direct TCP/IP LAN. 3,500 users, 20,000 event transactions. |
| 15. | XP-GT3500LABX | MIFARE / ISO14443A / B Serial No Reader with FingerPrint Reader with Colour LCD and Keypad reader and built-in controller with direct . 3,500 users, 20,000 event transactions TCP/IP LAN. |
| 16. | XP-GT10KL | Single Door Proximity Fingerprint Reader with Direct TCP/IP LAN Support up To 10K Fingerprint Templates. |
| 17. | XP-GT10KLABX | Single Door MIFARE Fingerprint Reader with Direct TCP/IP LAN Support up To 10K Fingerprint Templates. |
| No | Item | Features |
| 1. | CPU (Recommended) | Intel Core i5-10400 or higher |
| 2. | RAM (Minimum) | 8 GB |
| 3. | Operating System | Microsoft Windows 10, 11 (Home & Starter Editions Not Supported) Microsoft Windows Server 2019, 2022 |
| 4. | Microsoft.Net Framework | Yes (Version 3.5) |
| 5. | Ethernet & Serial Port | Yes |
| 6. | USB Port | Optional – Required for USB Dongle, USB to RS232 serial port converter |
| 7. | Display (1024 x 768 x 16 bit colours) | Yes |
| 8. | Mouse / Keyboard | Yes |
| 9. | Hard Disk (Free Space) | 50 GB |
| No | Documentation |
| 1. |  Product Brochure: xPortal3500 |
