XP-RDPRX Proximity Reader
- EM Proximity
- Simple
- Reliable
- Weather proof

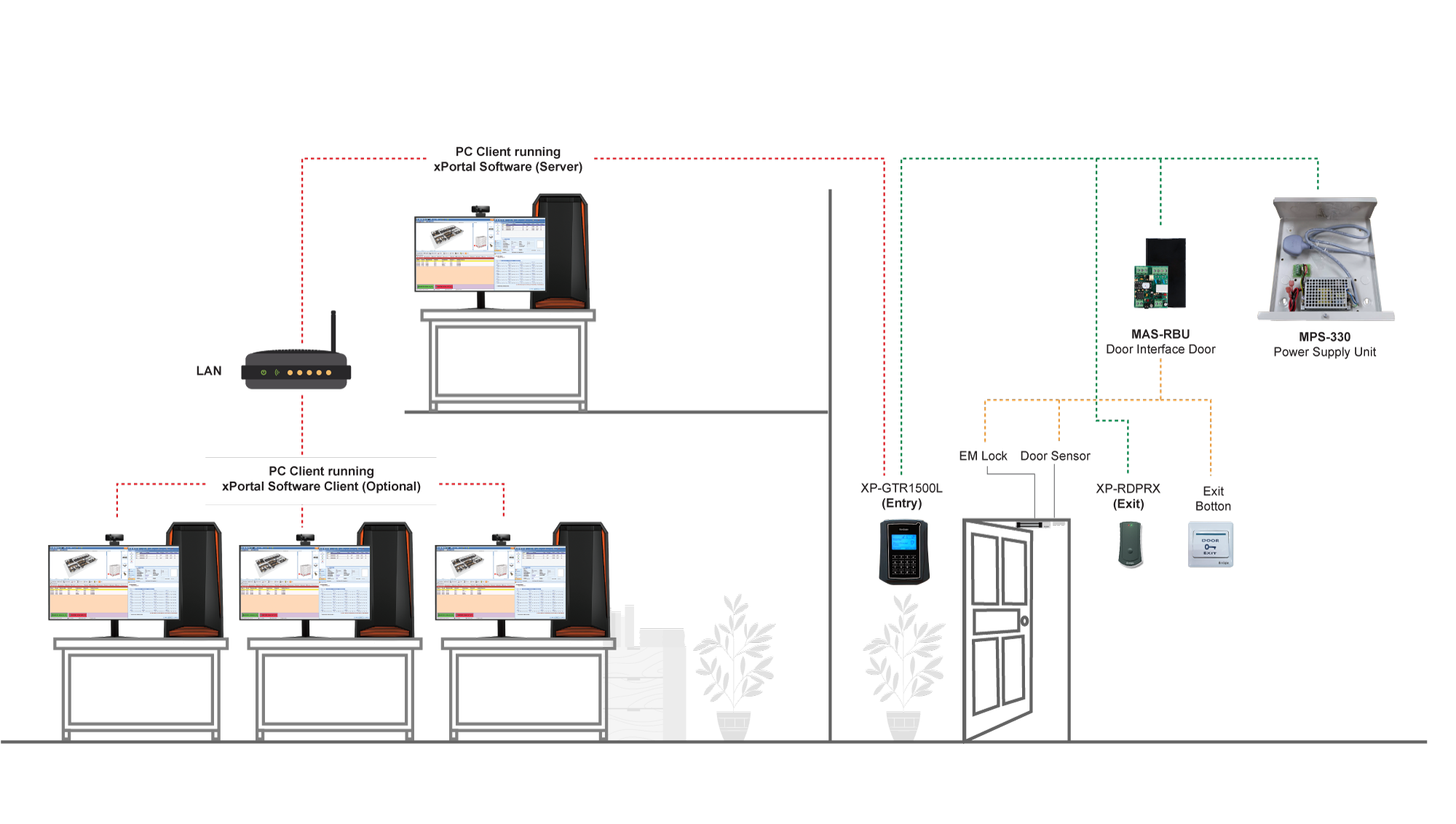

FeaturesConfiguration DiagramDocumentationFAQ
| No | Features | Description |
| 1. | Connectivity | TTL (ABA T2) |
| 2. | Reader type | EM Proximity |
| 3. | Card Digits | 6 |
| 4. | Reading range | Max. 7cm |
| 5. | LED indication | Green and Red |
| 6. | Buzzer | Yes |
| 7. | Dimension (HxWxD) | 100mm x 53mm x 20mm |
| 8. | Epoxy | Yes |
| 9. | Weather proof | Yes |
| 10. | Casing Material | ABS plastic |
| 11. | Input voltage | 12VDC |
| 12. | Current (Typical) | 150mA at 12VDC |
| 13. | Operating Temperature | 0-50°C |
| No | Documentation |
| 1. |  XP-RDPRX Datasheet |
FAQ
