M Series Controller – XP-M1300i/IP
1 Door IP Access Controller
- Encrypted IP
- Direct TCP/IP
- High Capacity
- Supports Up to 16 Digits

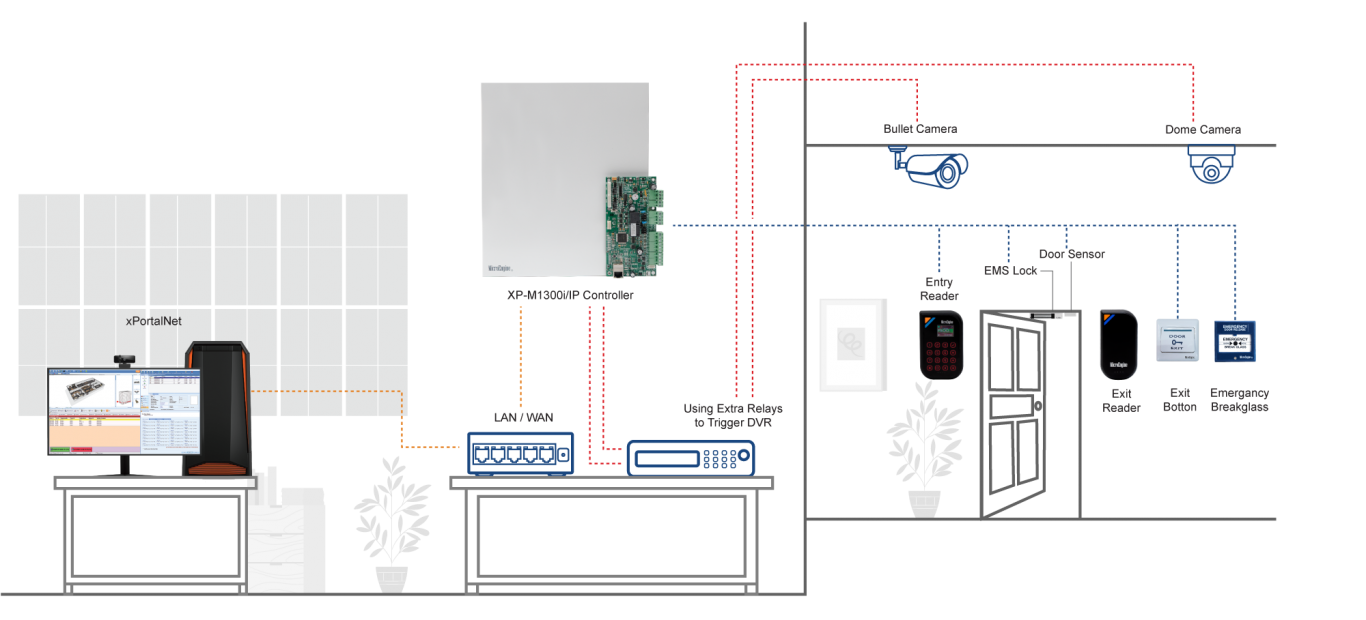

FeaturesConfiguration DiagramDocumentationFAQ
| No | Item | Features |
| 1. | No. of Doors | 1 Door |
| 2. | No. of Readers | Max 2 Readers (Plato Readers) – 1 Entry / 1 Exit |
| 3. | Wiegand / ABA Reader | Yes – Max 2 |
| 4. | Connection to PC | IP LAN (10/100 Base-T) / RS485 (Optional) |
| 5. | Connection to Readers | RS485 – Plato Reader Series / Wiegand / ABA |
| 6. | Card Holders | 30,000 (16 Digits) |
| 7. | Transactions | 50,000 |
| 8. | Time Setting | 255 Time Sets / 255 Time Zone (No Access Level Limits) |
| 9. | Holiday | 30 (2 sets) |
| 10. | Inputs | 1 x Door Sensor, 1 x Exit Button, 1 x Dedicated Fire Alarm Input, 1 x Dedicated Tamper Input, 2x Sensor Inputs |
| 11. | Door Relay Output(s) | 1 |
| 12. | Extra Relay Output(s) | Yes (1) – Configurable |
| 13. | Encrypted IP | Yes – AES 128 |
| 14. | Global Anti-Passback | Yes – Use SNET-GAC |
| 15. | Real Time Clock | Yes – with On Board Battery |
| 17. | Power Fail Monitor | Yes – with Power Level Monitoring |
| 19. | Diagnostic | Yes – Using Built in Web Browser |
| 20. | Onboard LED Indicators | Yes – Main Fail, Run, Coldstart, RS485 reader connected status, Downlink RS485 Reader Comm. (RX & TX) Uplink Serial Comm. to software (TX & RX). Fire Alarm, Door Sensor, Push Button, Sensor Inputs, Relay Outputs |
| 21. | Onboard Buzzer | Yes |
| 22. | Use with other MicroEngine controllers | Yes |
| 23. | Processor | Microchip PIC32 – 32 bit RISC MCU at 80 MHz |
| 24. | Memory | Program (FLASH: 512KB); DATA (EEPROM: 128KB, FLASH: 4MB) |
| 25. | PCB Board Dimension | 160mm (L) x 80mm (W) |
| 26. | Casing Dimension | 235mm (H) x 227mm (W) x 75mm (D) |
| 27. | Power Consumption | Typically 400mA (Controller board only) |
| No | Documentation |
| 1. |  DATASHEET-2023_XP-M1300i-IP |
