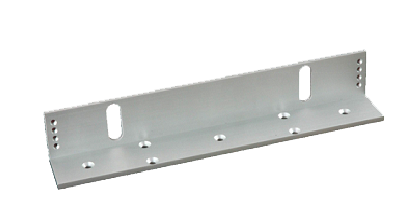

MAS-L-600S-R2
Bracket for 600LBS Electromagnetic Lock

The MicroEngine MAS-L-600S-R2 is a precision-engineered L-bracket designed specifically for 600 lbs electromagnetic locks, providing the ideal mounting solution for narrow door frames where space constraints limit
standard installation methods.

Product Features :

  • Tailored for Tight Spaces
  • Perfect Positioning
  • Secure and Durable
  • Easy Installation
  • Compatible Design
Product SpecificationDocumentation
No Item Features
1. Material Anodized Aluminium Finishing
2. Dimension 250mm(W) x 38mm(H) x 38 mm(L)
3. Thickness 4mm
4. Weight 200g
5. Suitable For 1. Out-Swing Door
2. Narrow Door Frame
No Documentation
1. PDF-Icon DATASHEET PRODUCT : MAS-L-600S-R2

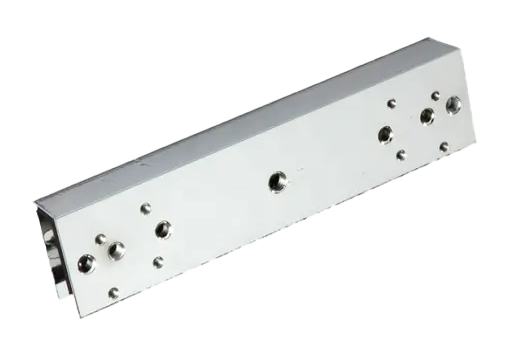

MAS-U-600S-R2
U-Bracket for 600LBS Electromagnetic Lock

The MicroEngine MAS-U-600S-R2 is a U-shaped mounting bracket engineered to support the installation of 600 lbs electromagnetic locks on frameless glass doors. This bracket provides a secure and non-invasive way to attach the armature plate to the glass door without drilling, making it the ideal accessory for glass door applications.

Product Features :

  • Designed for Glass Doors
  • Secure Armature Mounting
  • Clean and Elegant Finish
Product SpecificationDocumentation
No Item Features
1. Material Anodized Aluminium Finishing
2. Dimension Figure U: 180mm x 24mm x 39mm
Figure I: 125mm x 31.8mm
3. Thickness Figure U: 6 & 3mm, Figure I: 1.2mm
4. Weight Figure U: 200g, Figure I: 20g
5. Suitable For Frameless Glass Door
No Documentation
1. PDF-Icon DATASHEET PRODUCT : MAS-U-600S-R2

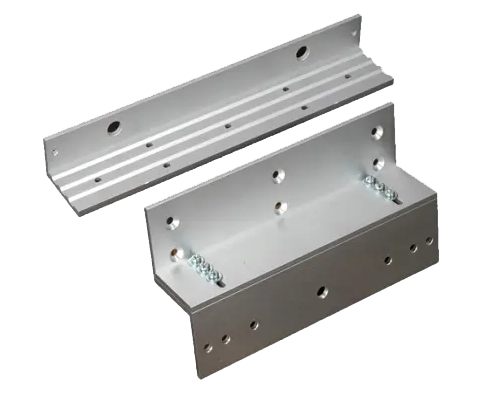

MAS-ZL-600S-R2
ZL Bracket for 600LBS Electromagnetic Lock

The MicroEngine MAS-ZL-600S-R2 is a specially designed ZL bracket set created for the installation of 600 lbs
electromagnetic locks on inward-opening swing doors. This bracket set offers a complete solution for securely mounting both the EM lock and the armature plate, ensuring optimal alignment and holding performance.

Product Features :

  • Complete Mounting Kit
  • Adjustable Armature Plate Positioning
  • Strong and Secure
Product SpecificationDocumentation
No Item Features
1. Material Anodized Aluminium Finishing
2. Dimension Figure Z: 180mm x 92mm
Figure L: 250mm x 46mm x 30mm
3. Thickness Figure Z: 4mm, Figure L: 4 & 5mm
4. Weight Figure Z: 400g, Figure L: 140g
5. Suitable For In-Swing Door
No Documentation
1. PDF-Icon DATASHEET PRODUCT : MAS-ZL-600S-R2
