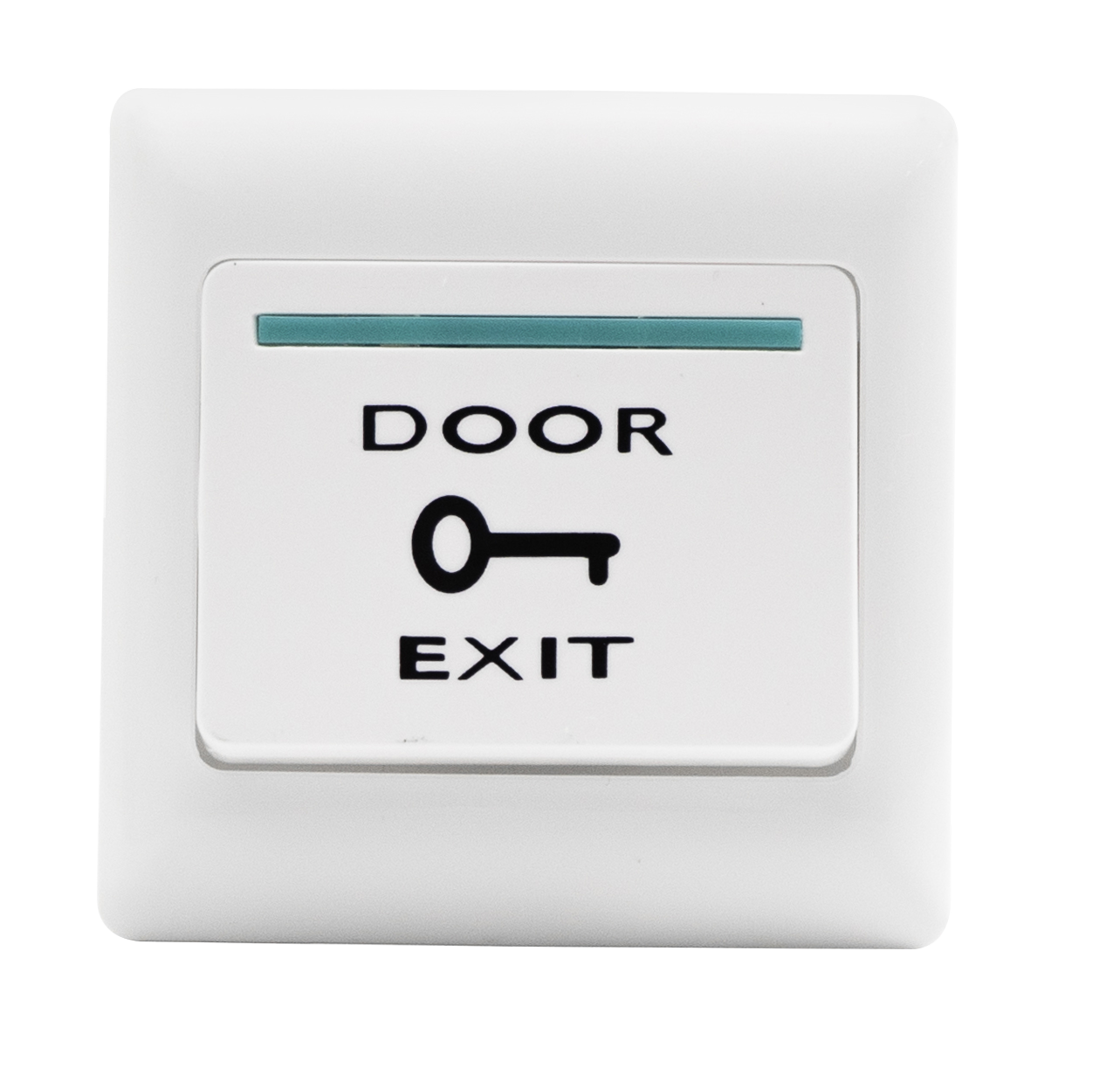

MAS-PB 3X3
Exit Push Button
The MicroEngine MAS PB 3×3 enhances the security and convenience of your access control system with a reliable, modern door exit push button. Featuring a clean, modern design and easy installation, this device is ideal for use in offices, commercial buildings, server rooms, and restricted areas where authorized exit is required.
Product Features :
- Simple & Intuitive Operation
- High Durability
- Compact & Elegant Design
- Wide Compatibility
Product SpecificationDocumentation
| No | Item | Features |
| 1. | Switch Function Type | SPST |
| 2. | Key Type | Non-Latching |
| 3. | Output Contact | 1-Normally Open |
| 4. | Maximum Contact Voltage | 12VDC |
| 5. | Maximum Contact Current | 2A |
| 6. | Operating Temperature | -10~+55°C |
| 7. | Suitable Humidity | 0-95% (relative humidity) |
| 8. | Dimension | 86mm(H) x 86mm(L) x 10mm(W) |
| No | Documentation |
| 1. |  DATASHEET PRODUCT : MAS-PB 3X3 |
