MAS-EBG
Emergency Break Glass

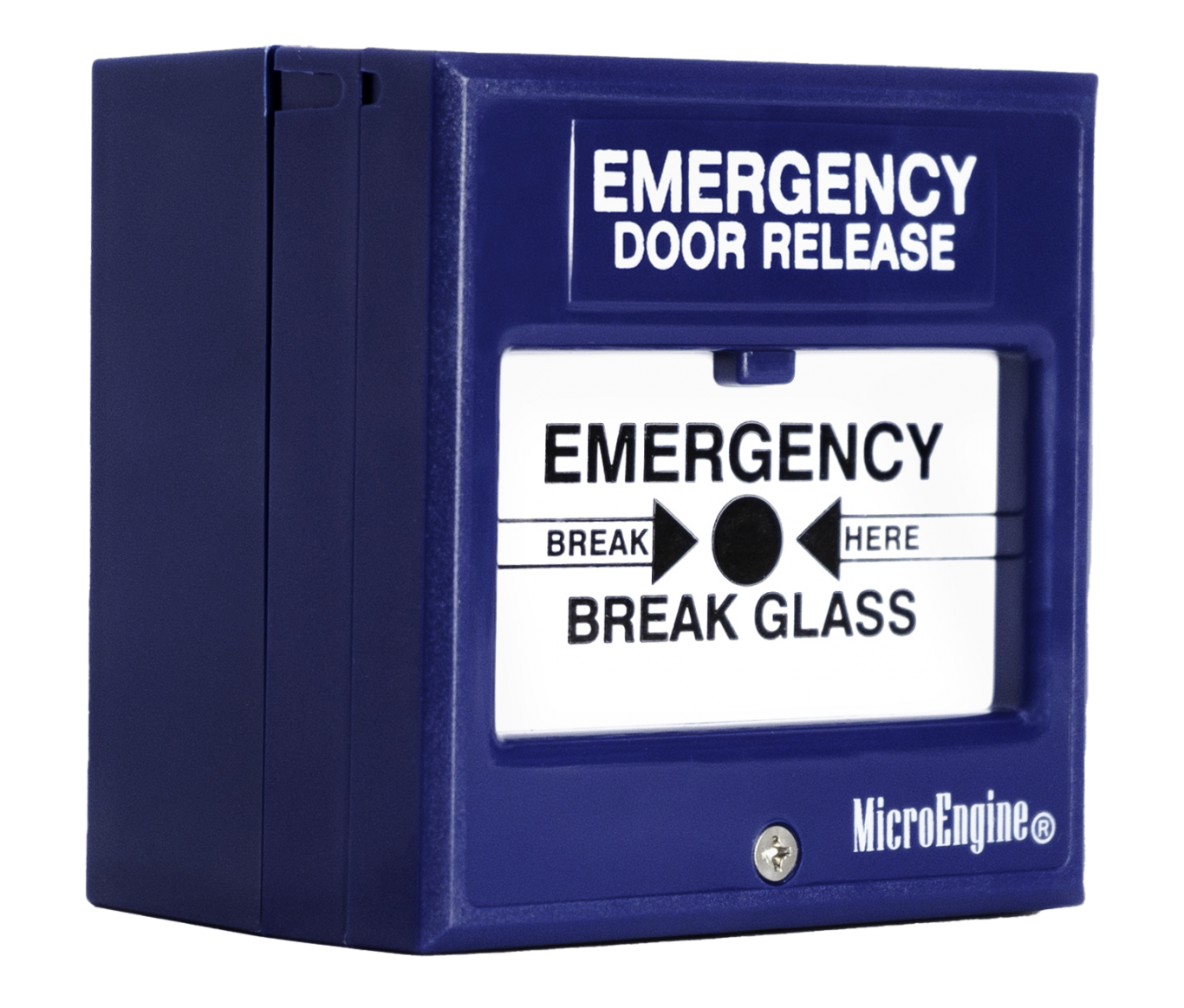

The MicroEngine Emergency Break Glass Unit is a mission-critical safety device engineered for rapid emergency response and secure manual override in access-controlled environments. Designed with high-visibility aesthetics and fail-safe functionality, it ensures swift evacuation and compliance with international safety standards, making it an essential component in any professional-grade security system.

Product Features :

  • Instant Emergency Access
  • High Visibility for Fast Response
  • Safe & Easy Activation
  • Tamper-Resistant & Resettable
  • Seamless System Integration
Product SpecificationDocumentation
No Item Features
1. Size 88mm x 88mm x 59mm
2. Output Contact NC / NO / COM (SPST)
3. Current Rating 12 / 24V DC 5A, 250V AC 3A
4. Humidity 0 – 95% non-condensing
5. Maximum Voltage 30V DC
6. Cable Termination 6 x 2.5mm²
7. Ingress Protection IP24D
8. Operating Temperature -20°C To +70°C
9. Storage Temperature -20°C To +70°C
10. Weight 153g
No Documentation
1. PDF-Icon DATASHEET PRODUCT : MAS-EBG
