MAS-600EMS-R2
Electromagnetic Lock

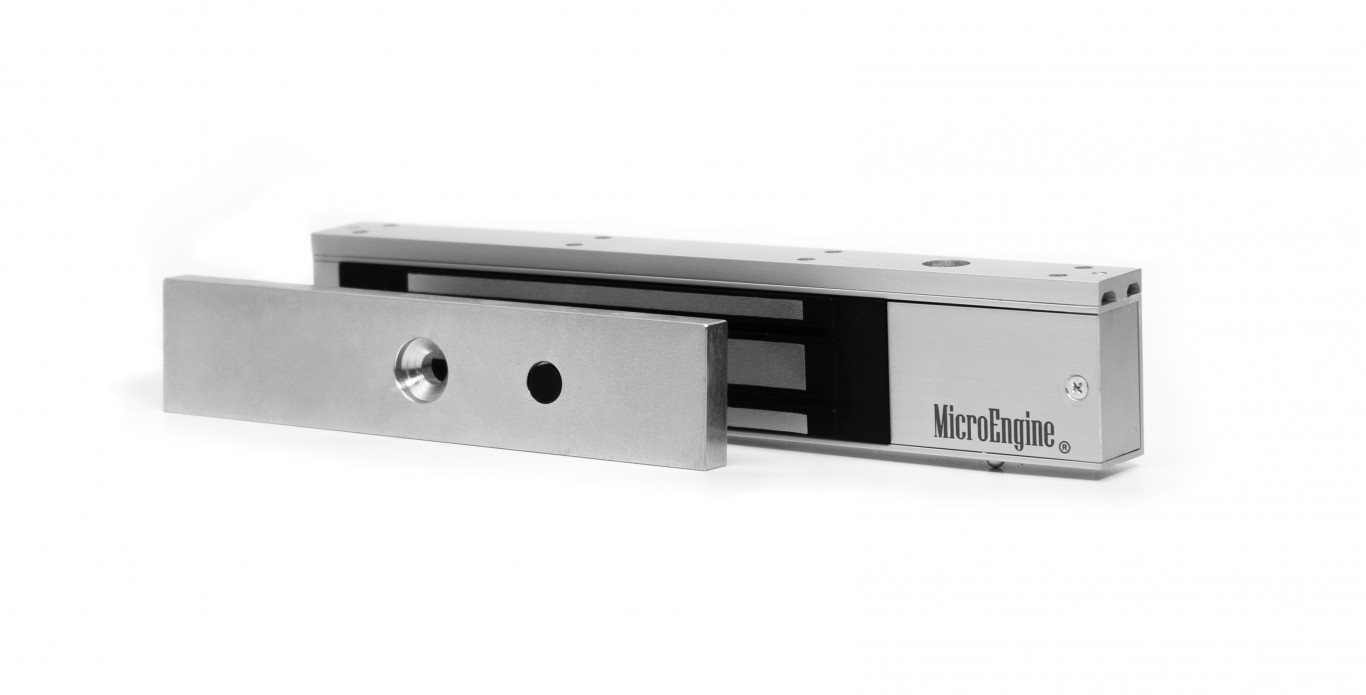

The MicroEngine MAS-600EMS-R2 is a high-performance electromagnetic lock designed to meet the security demands of modern access control systems. With a holding force of up to 600 lbs (272 kg), it offers dependable locking strength for wooden, metal, or glass doors across residential, commercial, and industrial environments.
Product Features:
- Strong Holding Force
- Fail-Safe Operation
- Silent & Energy-Efficient
- Slim Profile Design
- Flexible Mounting
Product SpecificationDocumentation
| No | Item | Features |
| 1. | Indication Lamp | LED |
| 2. | Magnet Size | 250mm(W) x 42mm(H) x 26mm(L) |
| 3. | Armature Size | 180mm(W) x 38mm(H) x 11mm(L) |
| 4. | Holding Force | Up to 600LBS |
| 5. | Current Drain | 500mA±10% / 12VDC |
| 6. | Weight | (-10 to 55) °C / (14 to 131) °F |
| 7. | Dimension (contact) | 275mm(H) x 135mm(W) x 75mm(D) |
| 8. | Dimension (magnet) | 275mm(H) x 135mm(W) x 75mm(D) |
| 9. | Operating Temperature Range | -40º C~60º C |
| 10. | Output Contact | 2.0kg |
| No | Documentation |
| 1. |  DATASHEET PRODUCT : MAS-600EMS-R2 |
